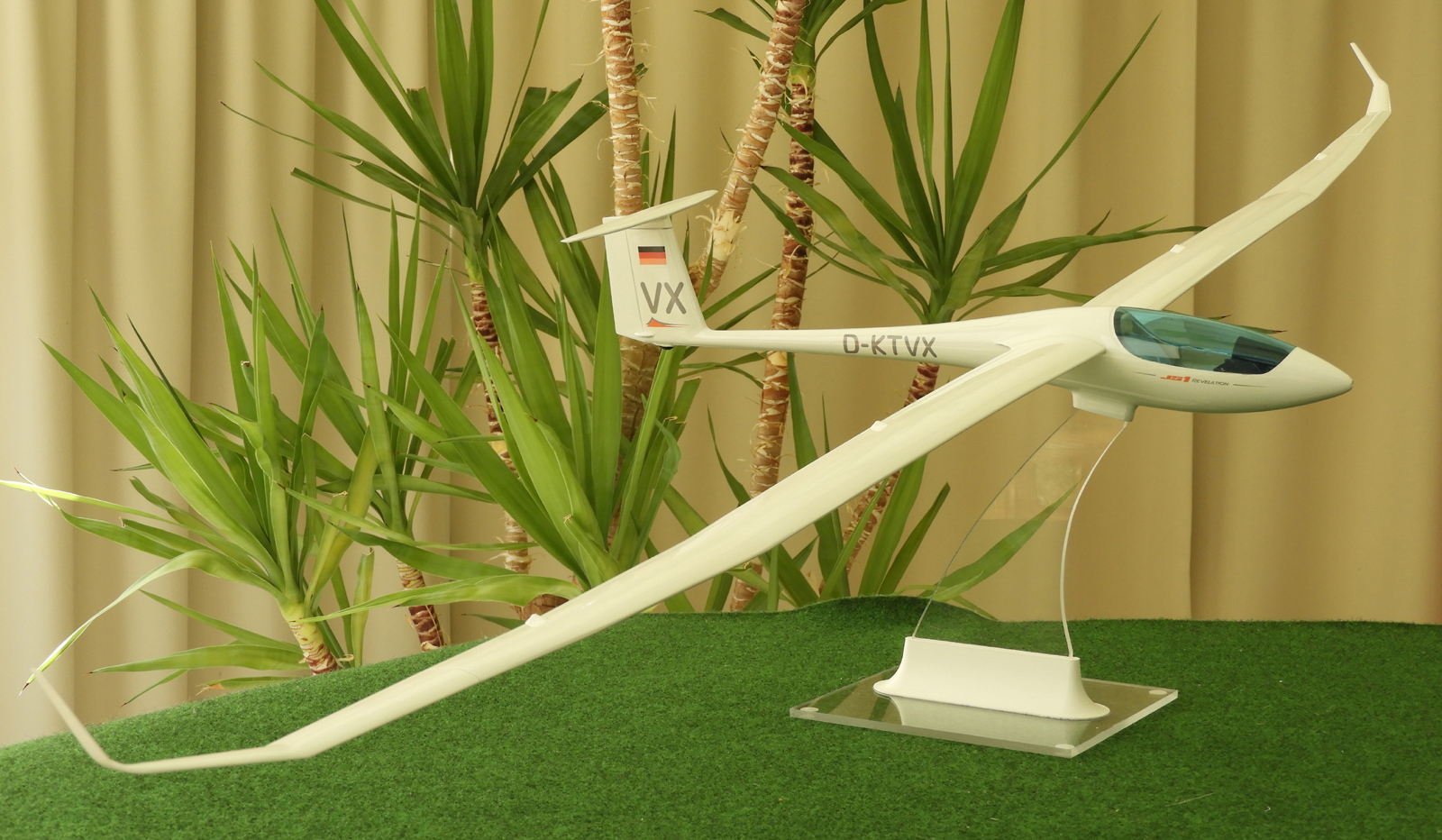

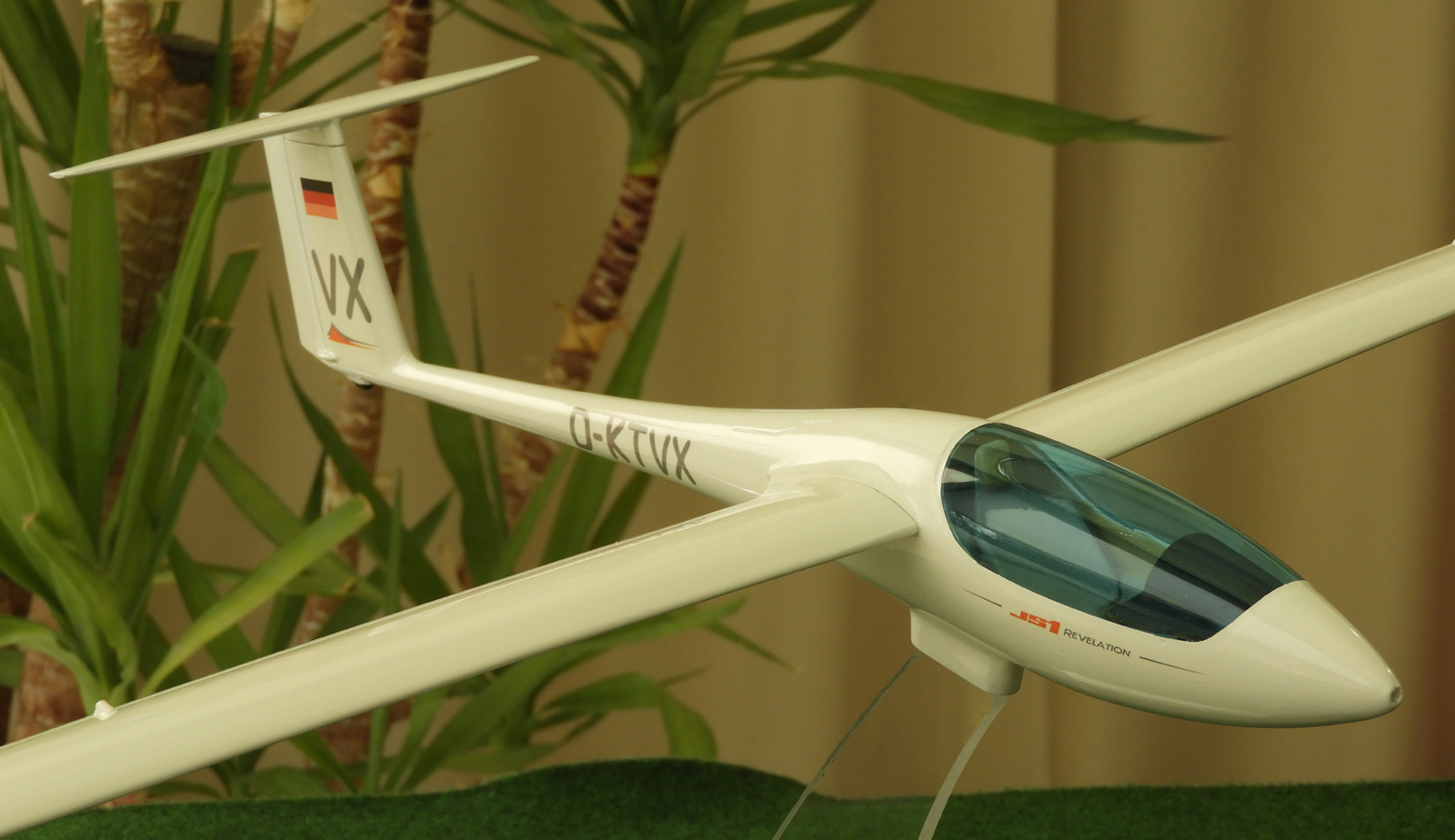

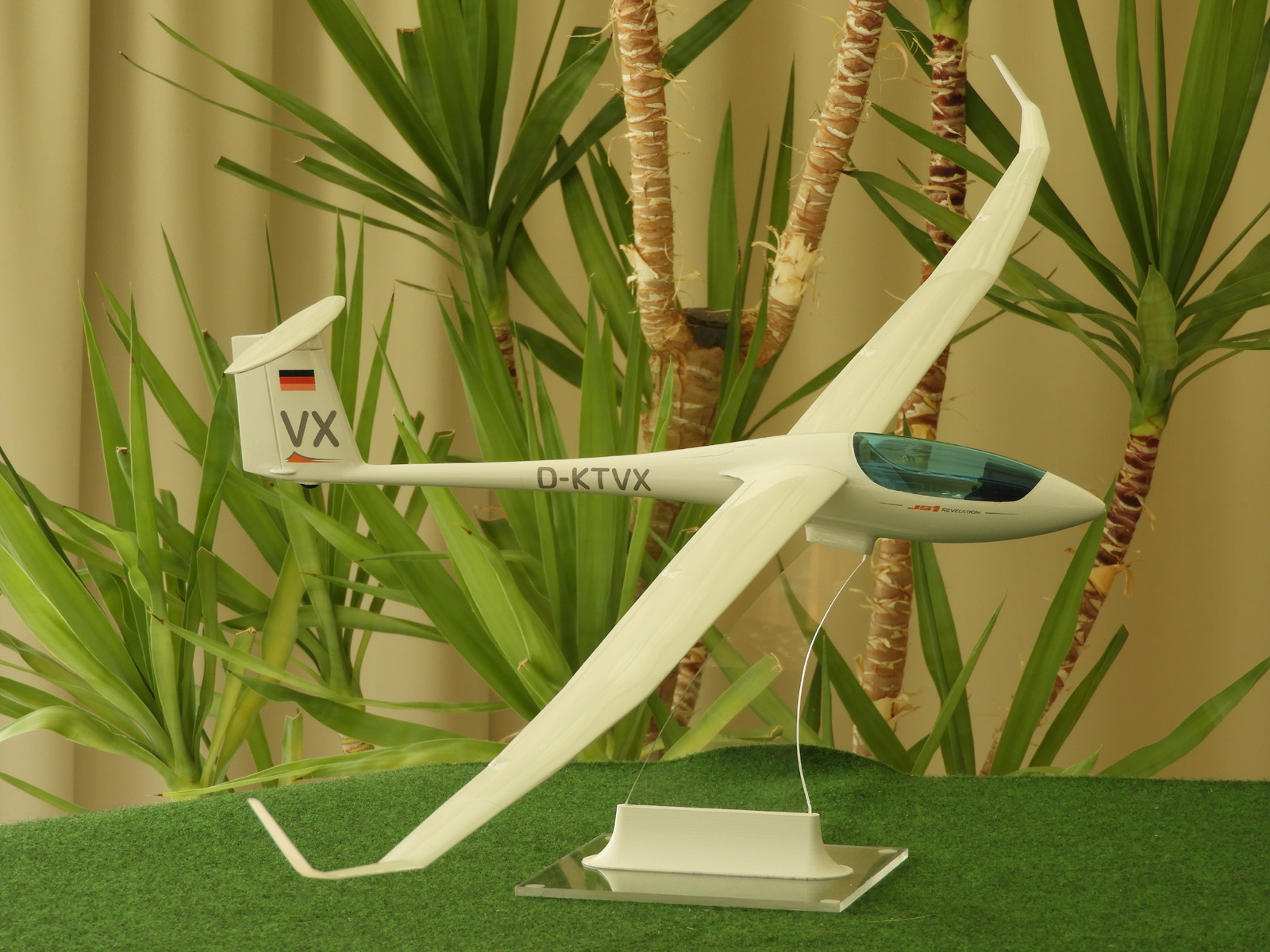

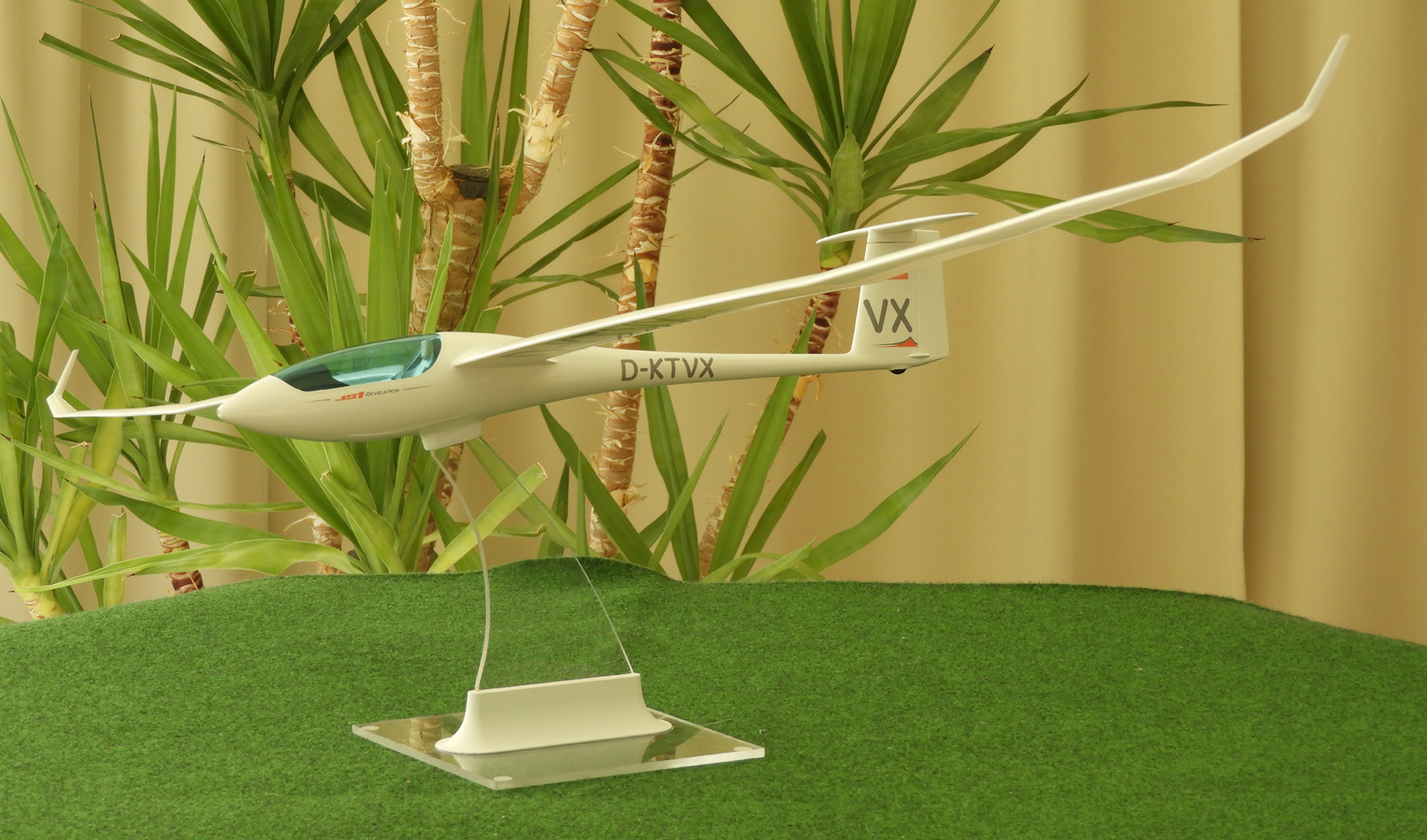

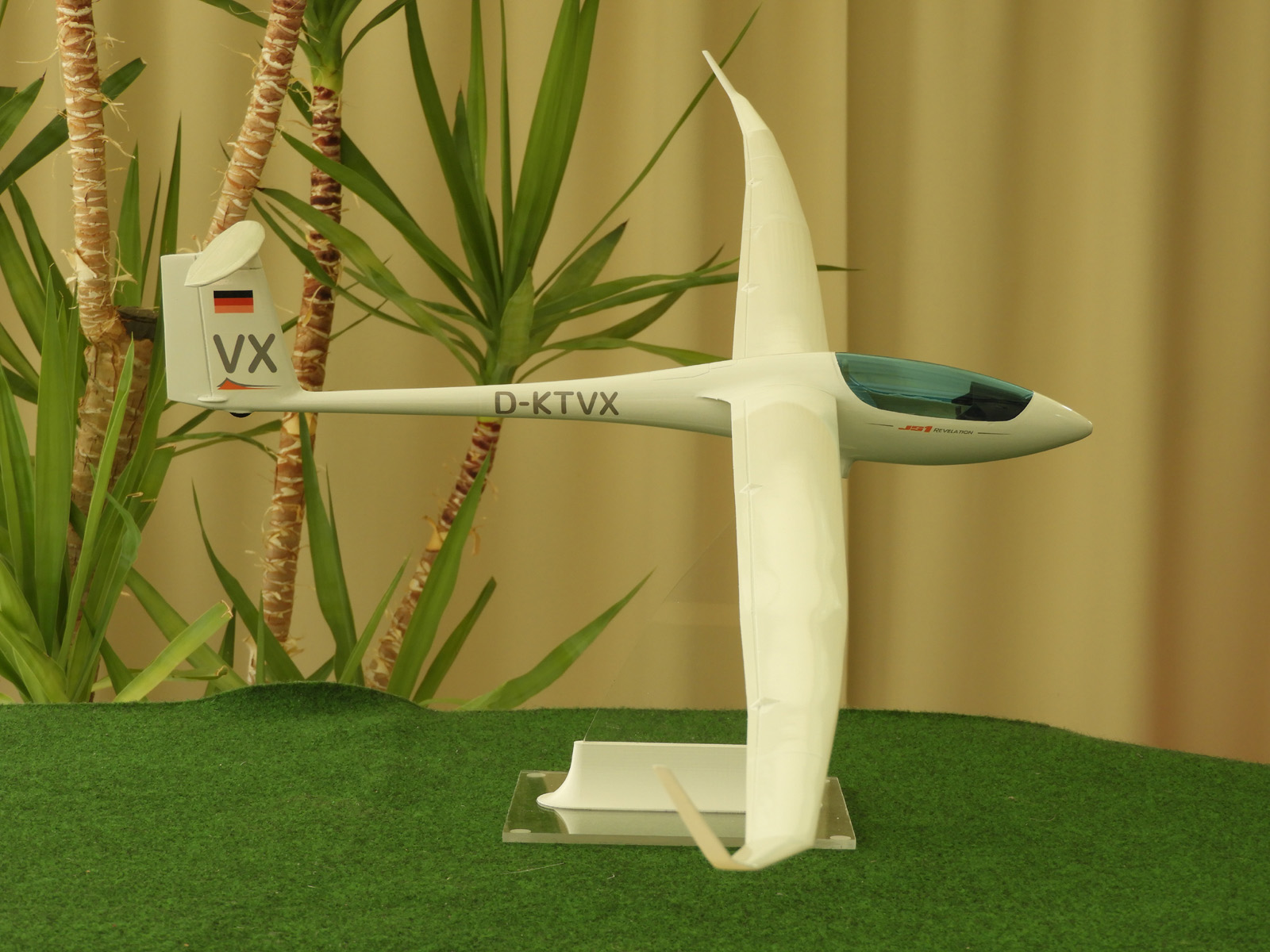

Jonker Sailplanes JS1-21

Click on image to enlarge

The Jonker JS-1 Revelation is a glider built of glass-fibre, carbon fibre and Kevlar. It is available with an 18-metre span for the 18 metre class or a 21-metre span for the Open class. The manufacturer is Jonker Sailplanes of Potchefstroom South Africa, founded in 2004 by two brothers, Attie and Uys Jonker. The structural and chief designer is Attie Jonker, while the airfoil and main aerodynamic features were developed by Johan Bosman in co-operation with the Delft University of Technology.

A new version, JS1C-21m, with 3 metre wing-tips, which increase the span to 21 metres, has been developed. The first flight was on 22 March 2012. Because of the higher wing loads and increased maximum take-off mass of 720 kg (increased from 600 kg), the wing/wingtip junction has been redesigned including stronger wing spar caps and thicker wing-tip spars. All future JS1 Revelations will be compatible with the optional 21m wing-tips.

Theoretical performance gives a claimed best glide of around 1:60 and, with the maximum wing loading of 58.7 kg/m2 and the polar remaining flat at high cruise speeds, the manufacturers state that it is competitive at the highest level with other Open Class gliders.
