Schleicher ASW 22 BLE

Click on image to enlarge

The ASW 22 is an Open Class glider built of modern fibre reinforced composites including carbon-fibre and Kevlar.

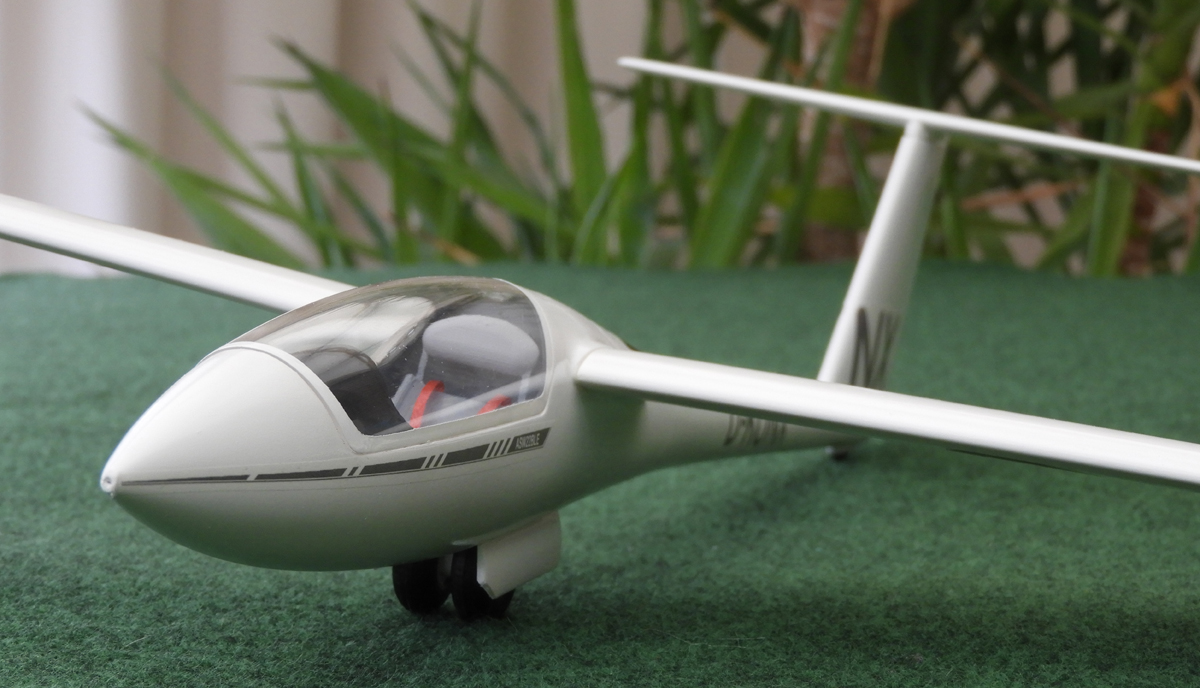

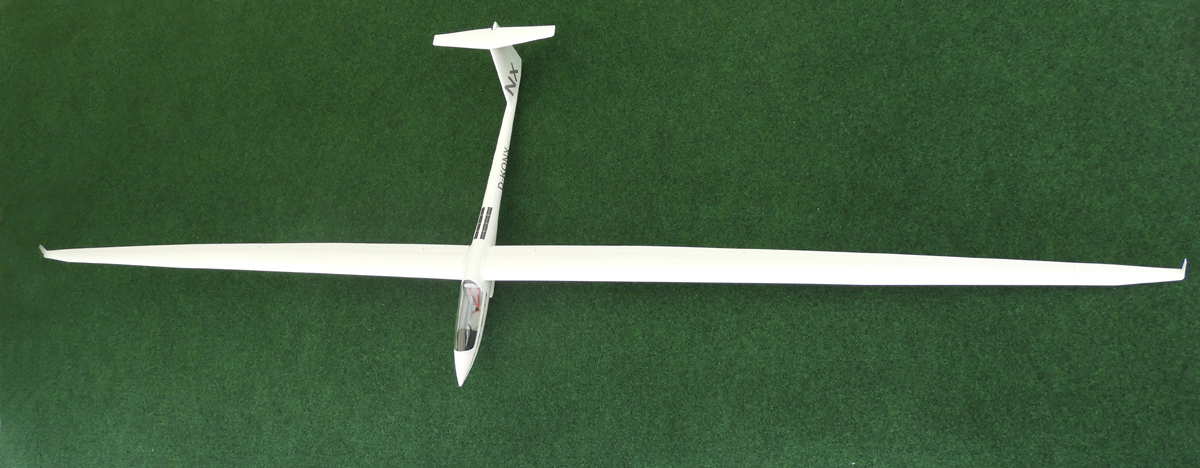

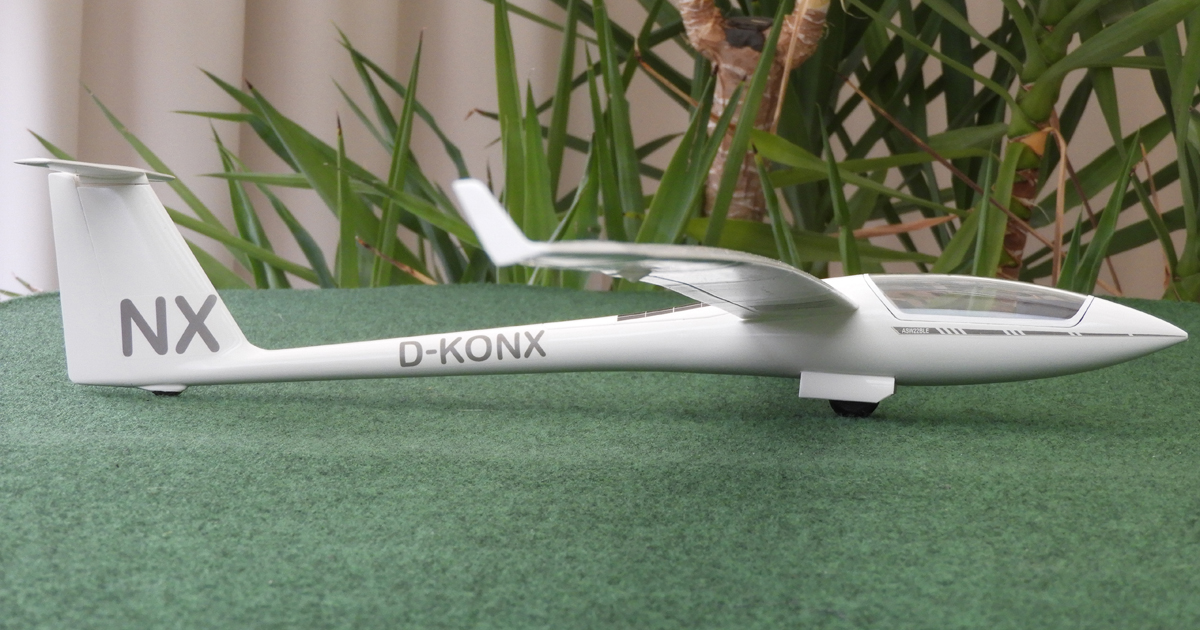

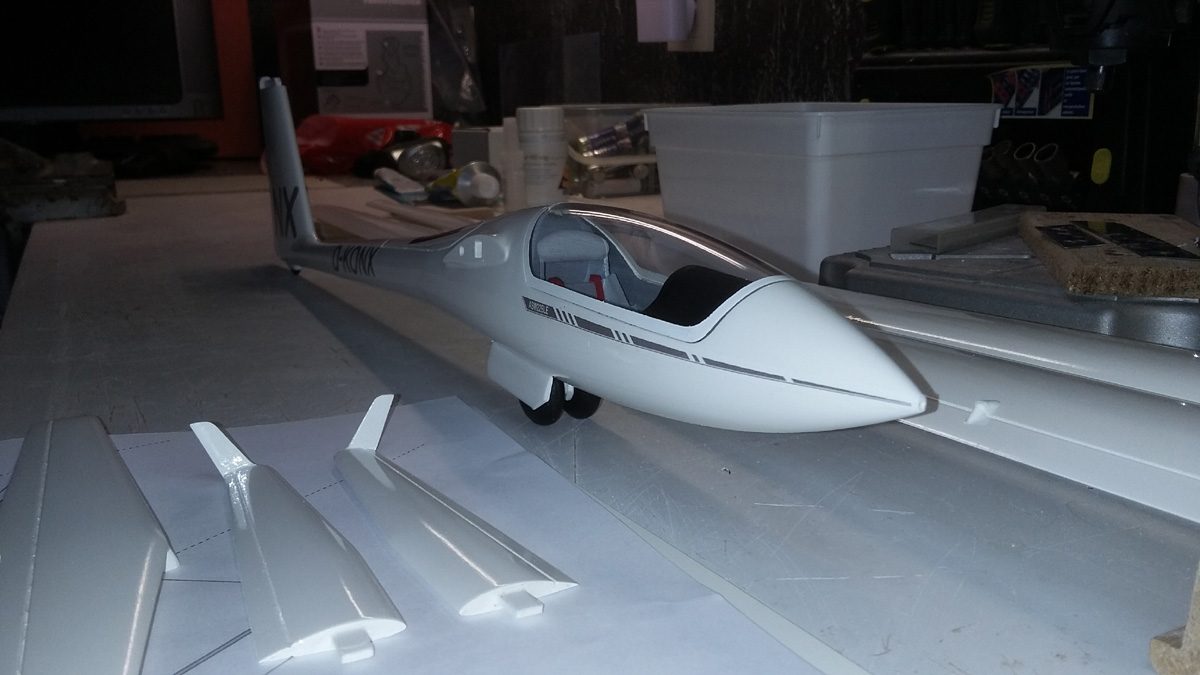

The manufacturer of the ASW 22 is Alexander Schleicher GmbH & Co. The 'W' indicates that this is a product of the German designer Gerhard Waibel. First flight was on 8 July 1981 as a 22-metre glider. The span was increased to 25 metres for the ASW 22B with a modified inner wing section and flaperons similar to the ASW-20. It uses a Horstmann and Quast wing profile on the inner section with underwing tubes to collect high-pressure air which is then expelled through turbulator holes in the bottom wing skin ahead of the flap and aileron hinge line to prevent the separation of the laminar flow. The ASW 22 BLE is a self-launching versions with 49 hp Rotax 505A engine and a wingspan of 26,58m. The 1/15 scale model has a wingspan of 177cm.
